New Line Button - Note that adding a line in this table also creates a record in Drawing Lists.

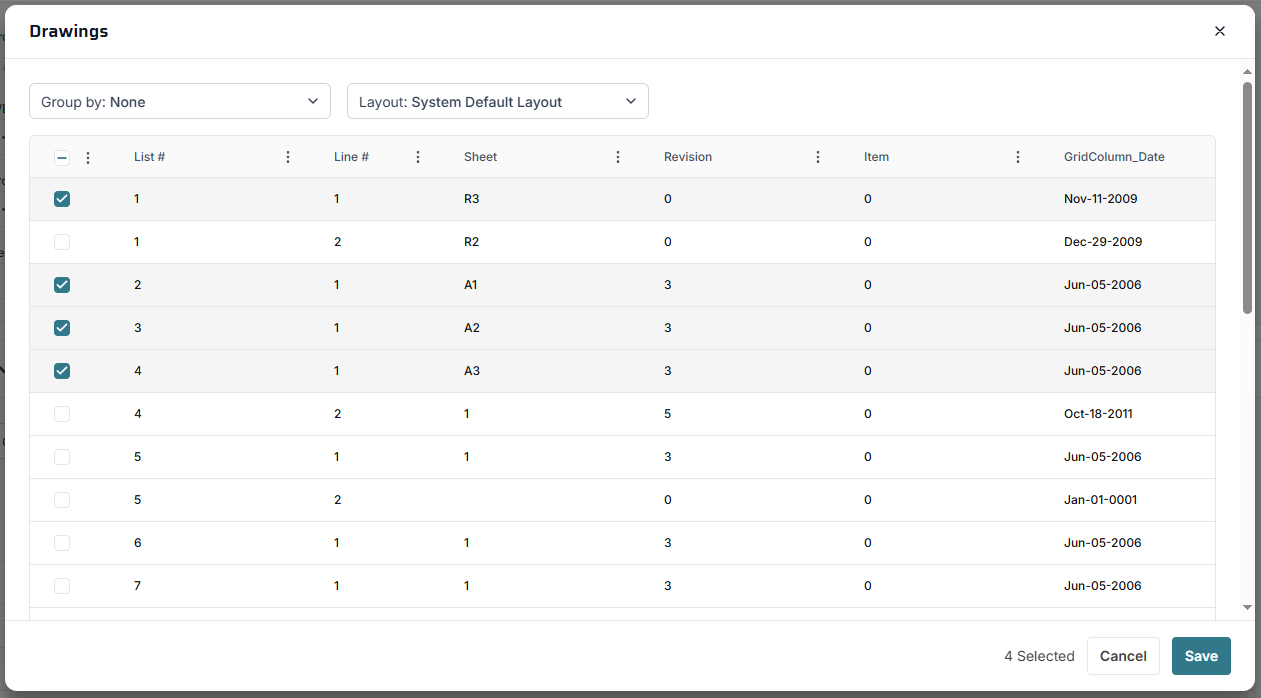

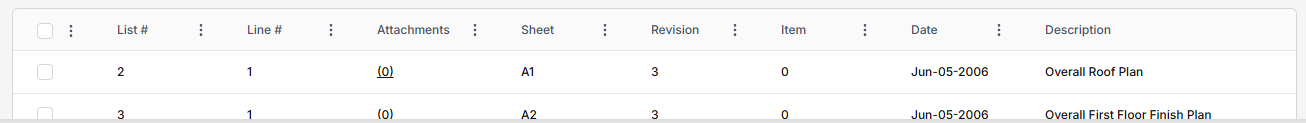

Link Drawings Button - Click this button to open the Link Drawings Dialog. The dialog displays all of the Drawing Lists records for the current project. Select each Drawing List you wish to link to the Drawing Set and then click the Save button. The dialog closes and the selected lines appear as new lines in the Details table.
The fields that are shown vary, depending on your security settings and the selected layout and may include:
List # Field - Read only. The ID of the linked Drawing Lists record. Click the link to navigate to the record.
